As one of the world’s leading inverter suppliers, SolaX on-grid inverters enjoy great popularity all over the world and they are now also available in Pakistan. These inverters stand out not only for their superior performance but also for many excellent functions, such as reactive power compensation and AFCI protection.
* Reactive Power Compensation
Since inverter load consumes both active and reactive power in practical cases, reactive power compensation is developed to maximize active power output of the inverter. And SolaX inverter would intelligently alter the power factor when providing active power, generating reactive power for intelligent reactive power compensation.
* AFCI Protection
To prevent electrical fires caused by DC arcs, the arc detection function (AFCI) turns out to be one of the necessary protective measures. The integrated AFCI function developed by SolaX can detect all series arcs within the DC side circuit from 200 to 750 J. When an arc is detected, SolaX inverter stops running immediately and an error notice will be displayed within 2.5 seconds.
In addition to the functions mentioned above, SolaX also provides some solutions to meet the potential needs of its customers. Some of them are quite impressive, including the following two.
* Master/Slave Parallel Solution

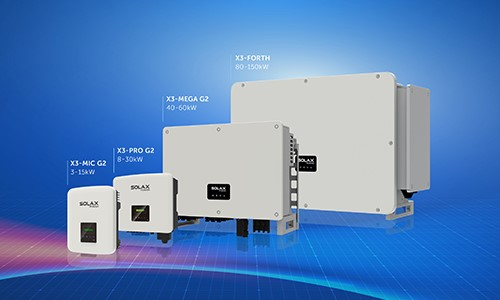

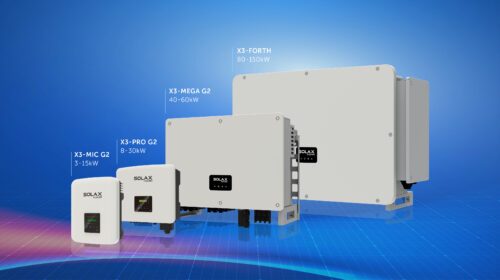

One of the currently popular methods to achieve high power output is the Master/Slave parallel solution for inverters, which allows a flexible power rating, and improves overall maintainability and interchangeability. SolaX on-grid inverters such as X3-PRO G2 8-30 kW enable up to 5 units in parallel with a maximum output of 40-150 kW, which can meet the needs of small-scale C&I scenarios.
* On-grid Inverter + Hybrid Inverter + Datahub
SolaX three-phase grid-tied inverters, for example, X3-MEGA G2 40-60 kW can be supported in parallel with storage inverters for energy storage via Datahub 1000, a professional device that is used to monitor and manage user’s site with multi SolaX inverters. In this Solution, it supports up to 40 on-grid inverters and 10 hybrid inverters. The loads will use the energy from on-grid inverters in priority to avoid unnecessary discharging.
SolaX is dedicated to offering more possibilities so as to satisfy the demand of customers, and strives to be at the solar power front line and devote itself to achieving a clean and sustainable future.
